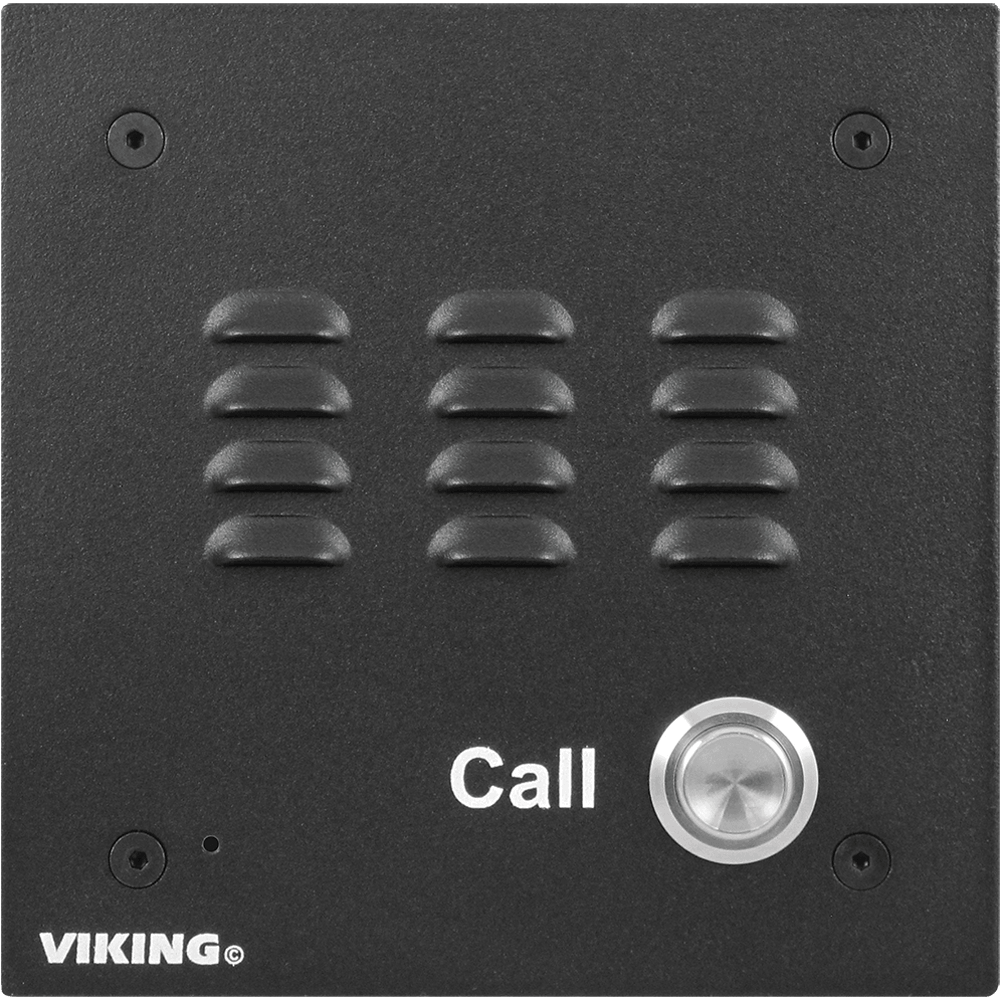

Viking E-10A Entry Phone with Black Aluminum Faceplate
Viking E-10A Entry Phone with Black Aluminum Faceplate
$137.86
SKU: E-10A
The Viking E-10A is a line powered entry door phone designed to two-way handsfree communication. Press the “Call” button to connect the Viking E-10A, the E-10A will disconnect when a CPC signal is detected, the programmed timeout has elapsed, a busy signal is detected or the call goes silent, making the unit automatically disconnect.
The Viking E-10A can be used with a Viking K-1900-5 or K-1900-30 dialer, or connected directly to a CO line or analog PABX / KSU station when programmed as a ringdown circuit. If a line or station is not available. A Viking DLE-200B ringdown circuit can be used. One to four E-10A speaker phones can share an existing entry phone line in a house or small business when used with a Viking C-200, C-250 or C-2000B Entry Phone Controller.
Couldn't load pickup availability
Viking E-10A Features:
- Commercial, industrial and residential door security
- Vandal Resistant
- Flush Mount
- Door or gate communication
- Business delivery entrances
- Use in conjunction with a Viking K-1900-5 Dialer on C.O. lines or analog PABX/KSU stations
- Use on any programmed ringdown circuit of an analog PABX/KSU station
- Alternate action call button to place or cancel a call
- Intelligent call progress detection for automatic hang-up on CPC, silence, busy signal, or time out
- Telephone line powered
- Optional VE-5X5 Surface Mount Box
- Adjustable microphone and speaker volume
- Programmable maximum call length
- Selectable auto-answer feature allows remote monitoring
- Two way handsfree communication
- Programmable VOX (mic/speaker) switching speed
- For Enhanced Weather Protection version see E-10A-EWP
- Manufacturer Warranty: 2 Year Limited Warranty
-
Viking E-10A Applications:
- Door or gate communication, business delivery entrances
- Provide unique front and back door chimes and paging when used with a Viking C-2000B and a Viking SLP-1 or SLP-4
- Residential, commercial, and industrial door security
- Use with a Viking K-1900-5 or K-1900-30 for automatic speed dialing on telephone lines or analog PABX / KSU station ports
- Use on any analog PABX station port with programmable ringdown capability
-
Viking E-10A Specifications:
- Power: Telephone line powered (18VDC / 20mA minimum)
- Overall Dimensions: 5″ x 5″ x 2.25″ (127mm x 127mm x 57.2mm)
- Rough-In Box Dimensions: 4″ x 4″ x 2.15″ (102mm x 102mm x 55mm)
- Operating Temperature: -30°F to 150°F (-34°C to 65°C)
- Humidity: 5% to 95% non-condensing
- Maximum Speaker Volume: 70dB SPL @ 1m
- Ring Voltage: 25VRMS minimum
- Minimum CPC Disconnect Time: 300ms
- REN: 0.8A
- Connections: (2) Gel-filled butt connectors
Viking E-10A Certifications:
- FCC Part 68
- FCC Part 15
