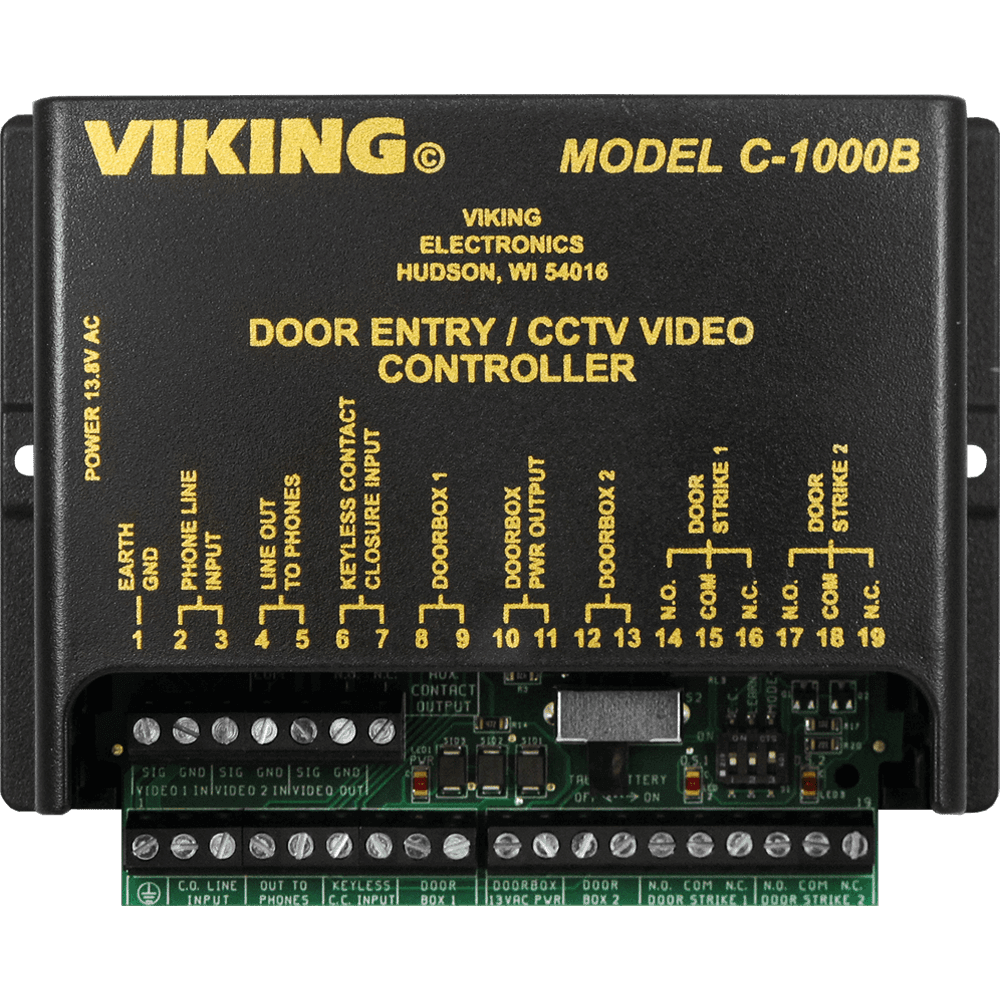

Viking C-1000B Two Door Entry and CCTV Camera Controller

Door Entry Doorbox and CCTV Video Controller allows single line phones or phone systems to share a phone line with one or two doorboxes or paging amplifiers. It provides two Touch Tone controlled relays to operate door strikes or gate openers and provides door-box triggered CCTV camera switching.

C-1000B Features:

• Doorbox triggered CCTV camera switching
• Can be used on single line, residential or home office applications as well as on fully loaded systems
• Custom ringing mode allows user to distinguish doorbox calls from Central Office (C.O.) outside line calls
• Call waiting tones indicate which doorbox is calling and distinguish a doorbox call from a C.O. outside line call
• Calls can be placed on hold when visitors call from the doorbox or when paging
• Two touch tone controlled N.O. or N.C. dry contact closures (5 amp rating) for door strikes or gate openers
• Keyless entry / postal lock input
• Built-in talk battery for “no C.O. line” applications
• Auxiliary contact output for doorbells, cameras, lights, and more
• Analog PABX/KSU station mode allows compatibility with a single Viking handsfree phone
• Compatible with Viking Single Line Paging Controller SLP-1

Compatible with Viking Entry Phones:

• W-1000
• W-2000A
• W-2000A-EWP
• W-3000
• W-3005

Applications

• Add one or two Viking doorboxes to your home or office phones
• Switch between two CCTV cameras automatically when either doorbox is activated
• Add a Viking SLP-1 (DOD 478) or SLP-4 (DOD 479) Single Line Paging Controller to provide paging, intercom, loud ringing, door chime and music on hold features
• Provide commercial or residential security via two-way handsfree communication from a door or gate
• Use as a line concentrator (one fax machine or answering machine can answer three lines)

Specifications

• Power: 120VAC / 13.8VAC 1.25A UL listed adapter provided
• Dimensions: 5.25″ x 4.1″ x 1.75″ (133mm x 104mm x 44mm )
• Operating Temperature: 32°F to 90°F (0°C to 32°C)
• Humidity: 5% to 95% non-condensing
• Door Strike SPDT Relay Contacts: 5A @ 30VDC / 5A @ 250VAC, 250VAC maximum
• CCTV/Auxiliary SPDT Relay Contacts: 1A @ 30VDC / 0.5A @ 125VAC, 250VAC maximum
• Pulse Dialing Detection: 10pps
• Talk Battery: 28VDC
• Maximum Doorbox Power Supply Length: 100 ft, 24AWG wire
• Connections: (26) cage clamp screw terminals

Certifications

• FCC Part 68
• FCC Part 15
