Viking AIB-1 - Audio Isolation Board
Viking AIB-1 - Audio Isolation Board
$35.69
SKU: AIB-1Usually ships in 3-5 business days
Couldn't load pickup availability

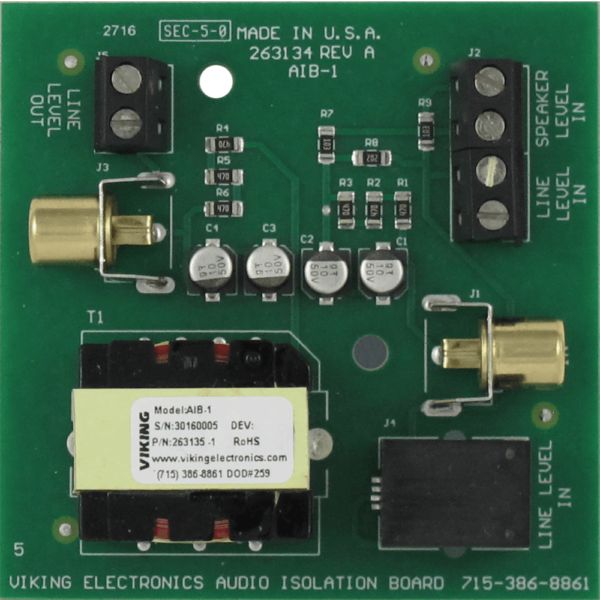

The AIB-1 is a 1:1 isolation transformer designed to enable coupling between audio circuits. The transformer is mounted on a printed circuit board which is easily wall mounted with included foam tape and screws. Speaker Level, Line Level, and Telecom Station inputs are available on screw terminals, an RCA jack, and a modular jack. The Line Level output is available on screw terminals and an RCA jack.
E-1600-50-IP Features:
- Low cost solution
- Inputs available on screw terminals, RCA jack, and modular jack
- Outputs available on screw terminals and RCA jack
- Line Level, Speaker Level, or Telecom Station inputs
- Line Level output
- Wall mountable with foam tape and screws
- Excellent sound quality
Specifications:
- Dimensions: 2.7” x 2.7” x 1” (69mm x 69mm x 26mm)
- Shipping Weight: 0.4 lbs (0.18 Kg)
- Temperature: 32°F to 90°F (0°C to 32°C)
- Humidity - 5% to 95% non-condensing
- Frequency Response +/-3dB: 50Hz to 20kHz
- Insertion loss with 600 Ohm Load: -2dB
- Winding Ration: 1
- Input Impedance: 600 Ohms
- Output Impedance: 600 Ohms
- Connections: (1) RJ-11 modular jack, (2) RCA jacks, (6) cage clamp screw terminals
