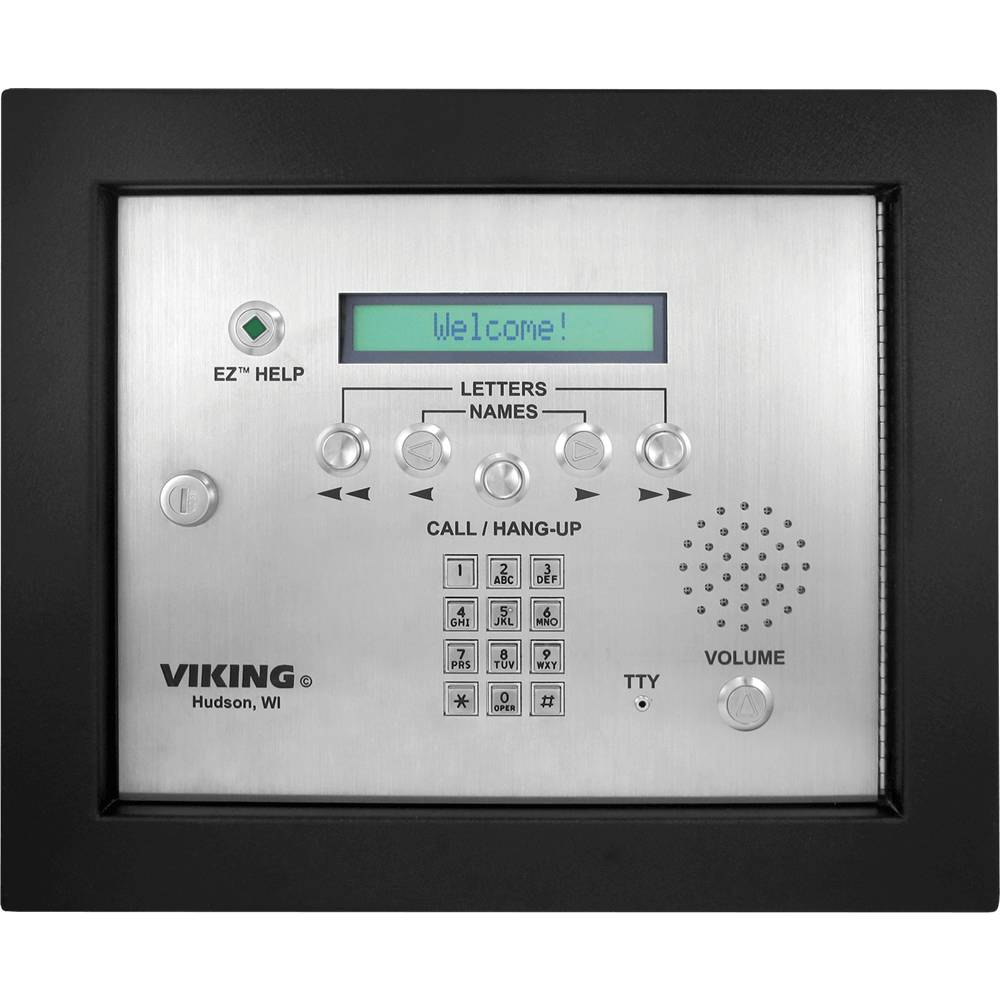

Viking AES-2000F ADA Compliant Apartment Access Control Entry System

Viking AES-2000F ADA Compliant Apartment Access Control Entry System


SKU: AES-2000F

4-6 week lead time

The Viking AES-2000F System provides both audio and visual assistance for those with disabilities.

Large 0.5″ tall characters on a back-lit LCD screen displays a directory of tenants as well as directions and prompts. The AES-2000F system has a built-in voice recorder providing a supporting audio message. When you press the *EZ® HELP button. Instructions on how to use the door entry system are both displayed and announced. .

The Viking AES-2000F System has a built-in directory and can support up to 525 tenant names and phone numbers and dials a pre-programmed phone number upon selection of a tenant. Once two-way communication has been established, the tenant can activate a remote door strike by entering a touch-tone command on the access control entry system. A second relay is also provided to operate an automatic door. The Viking AES-2000F System access control also supports keyless entry at the door via a built-in keypad or by adding a Viking Proximity Reader.

The Viking AES-2000F is designed to be surface mounted. If a surface mount version is required, see Viking AES-2000S. Both versions feature durable vandal resistant faceplates and housing. .

Note: This unit requires a Viking PB-100 (sold separately) for programming and because it uses modem transmissions, it requires a high-quality analog phone line for proper operation. .

* EZ® and EZ Access® are registered trademarks of the Wisconsin Alumni Research Foundation

View full details

Viking AES-2000 Features:

  • 16 position back-lit display
  • Large 1/2" high character display shows directory of people in building, and also displays directions and message prompts
  • EZ access button displays and announces information on how to use system
  • Built-in voice recorder can also provide a verbal message
  • Non-volatile digital voice announcer
  • Factory configured to handle 75 apartments (expandable to 525 apartments using ERAM-4M expansion kits)
  • Non-volatile data memory for names, phone numbers and access codes
  • Volume control
  • AES-NET card reader interface
  • TTY jack for connection to personal TTY
  • Postal lock input
  • Keyless entry capability
  • 5 amp door strike and automatic door relays
  • 12 gauge stainless steel front panel
  • 1/4” thick abrasion resistant polycarbonate display lens
  • Metal keypad and push button switches
  • Speaker protection screen
  • Weather resistant
  • Manufacturer Warranty: 2 Year Limited Warranty
  • Available in surface mount (AES-2000S) or flush mount (AES-2000F) configurations

NOTE: Requires PB-100 for programming.

Viking AES-2000F Applications:

  • High rise apartment buildings
  • Condos
  • Senior citizen buildings
  • Assisted care centers
  • Retirement homes
  • Gated communities
  • Use with Viking PRX-1 (DOD 221), PRX-2, PRX-3 or PRX-4, Proximity Card Readers

Viking AES-2000F Specifications:

  • Power: 120V AC/13.8V AC 1.25A, UL listed adapter provided
  • Dimensions: AES-2000F (Flush): 15.1" x 12.6" x 3.25" (383.5mm x 320mm x 82.55mm)
  • Environmental: -15° F to 130° F (-26° C to 54° C) with 5% to 95% non-condensing humidity (see Installation for details)
  • Display: 16 position, 0.5” x 4.25” back-lit LCD
  • Relay Contacts: 5A @ 30V DC/250V AC maximum
  • Connections: (20) cage clamp screw terminals
  • Maximum Wiegand Length (24 AWG wire): PRX-1: 800 ft (244m), PRX-2: 400 ft (122m), PRX-3 (using 3 pairs for power): 800 ft (244m), PRX-4: 800 ft (244m), Inc. is a leading provider of Viking Electronics phone systems and equipment. We specialize in business phones and business phone systems for small to large companies; with phone systems for any application. We sell many of the brands in the IT, Telecom, Datacom, Electrical, and Industrial spaces.
