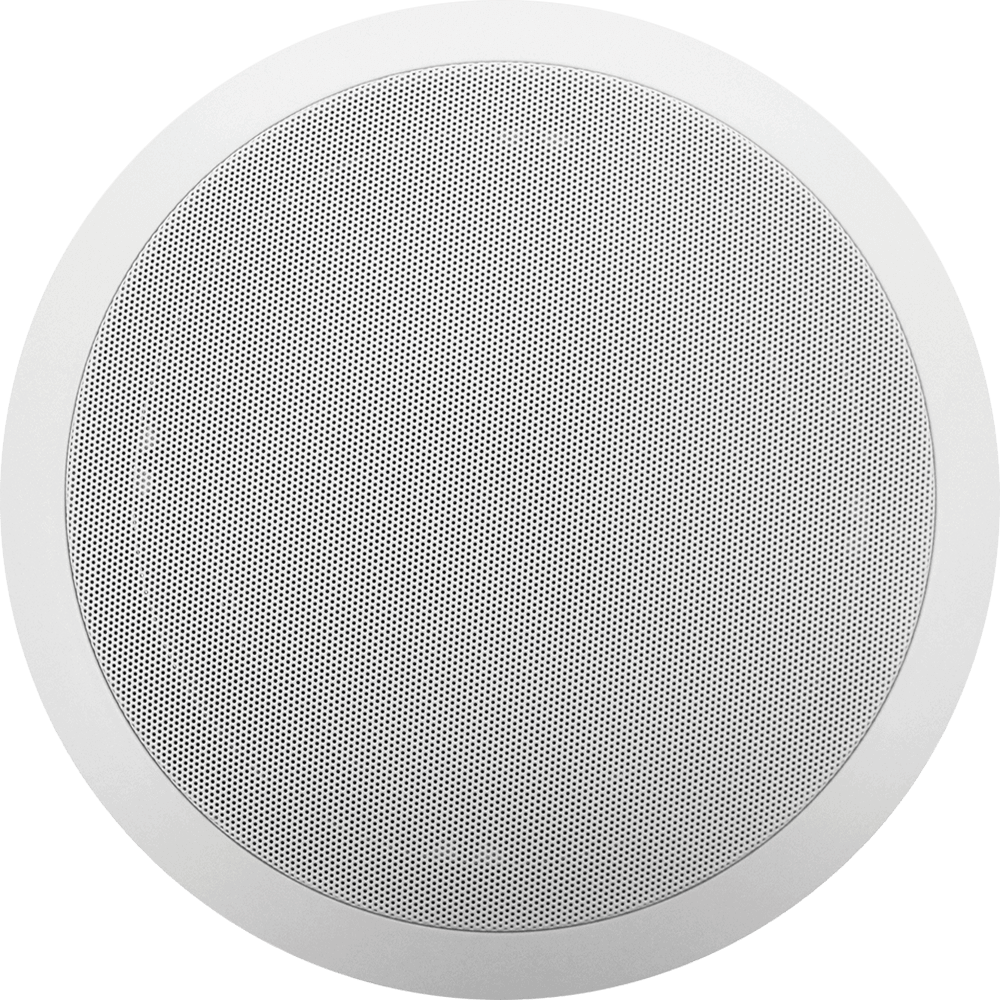

Viking 40TB-IP IP Ceiling Speaker for SIP Endpoint Paging or Multicast Paging / Background Music and Making Standard or Emergency SIP Calls
Viking 40TB-IP IP Ceiling Speaker for SIP Endpoint Paging or Multicast Paging / Background Music and Making Standard or Emergency SIP Calls
$460.47
SKU: 40TB-IP
Usually ships in 4 to 10 weeks
The Viking 40TB-IP Talk-Back Speaker enables two-way conversations via SIP and also allows for standard paging and background music via multicast. The Talk-Back Ceiling Speaker system easily connects with a single CAT5/6 cable from your PoE switch. Its shallow depth allows the ceiling speaker to be conveniently mounted in a standard 2″ x 4″ stud wall or ceiling.
Couldn't load pickup availability

The 40TB-IP Talk-Back Speaker enables two-way conversations via SIP and also allows for standard paging and background music via multicast.
Viking 40TB-IP Features:
- Connects with a single CAT5/6 cable from your PoE switch
- PoE powered (class 3,
- Paging prioritization
- Plays audio from multicast
- SIP endpoint or multicast group member
- Supports up to 10 multicast paging groups
- Blue “Call /Status” LED indicator
- SIP compliant
- Automatic Noise Canceling (ANC) feature for operation in noisy environments
- Viking’s proprietary VOX switching eliminates the need for “Push to Talk” mode
- Selectable auto-answer feature for monitoring
- Autoprovisioning via Viking programming software
- Built-in high efficiency 6 watt class D amplifier
- SIP/Multicast: SIP page, SIP page and zoned multicast stream, zoned multicast receive
- Support for access code to prevent unwanted SIP calls
- Line-level audio output for connecting to an external amplifier
- Hangs up on busy signal, time-out or touch tone command
- Network remote speaker volume control
- Can drive additional external analog speakers for greater coverage
- Mounting: Blind mounts into 9.5” hole, clearance requirement of 3.45” (87.3mm) above 1/2” gypsum board ceiling
- Heavy duty back box protects speaker and circuitry from plenum dust
- Automatic Gain Control (AGC) to automatically increase ring volume to compensate for ambient noise
Viking 40TB-IP Applications:
- Amplified SIP endpoint or multicast IP paging for: schools, hospitals, retail stores, office spaces, etc
- Provide background music and sound masking
- Add programmable secure relay control with optional RC-4A
- Making standard and/or emergency SIP phone calls via hands free talkback speaker
VoIP SIP System Compatibility List:
- 3COM VCX
- 3CX
- Aastra
- Asterisk
- Atcom
- Avaya IP Office
- BlueBox
- Brekeke
- Cisco Unified Communications Manager (CUCM)
- Freeswitch
- Grandstream
- iptel.org
- Kamailio
- MetaSwitch
- OfficeSIP
- OpenSIPS
- Panasonic
- Samsung Communications Manager (SCM)
- ShoreTel
- Siemens Communications Server (SCS)
- SIP Express Router (SER)
- sip.antisip.com
- Snom PBX
- Sonus
- Switchvox
- Teksip
- Toshiba
- VoIP.ms
- Vonage
Viking 40TB-IP Specifications:
- Power: PoE class 3 (<13 Watts)
- Dimensions: 11” x 11” x 4” (279mm x 279mm x 102mm)
- Back box: 9.25” x 9.25” x 3.45” (235mm x 235mm x 88mm)
- Operating Temperature: -40°F to 140°F (-40° C to 60° C)
- Humidity - Standard Products: 5% to 95% non-condensing
- Audio Codecs: G711u, G722 and G711a (SIP only)
- Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over
- Connections: (1) RJ45 10/100 Base-T, (1) 8 position terminal block
- Sensitivity: 96dB / 1W / 1M S.P. Level
