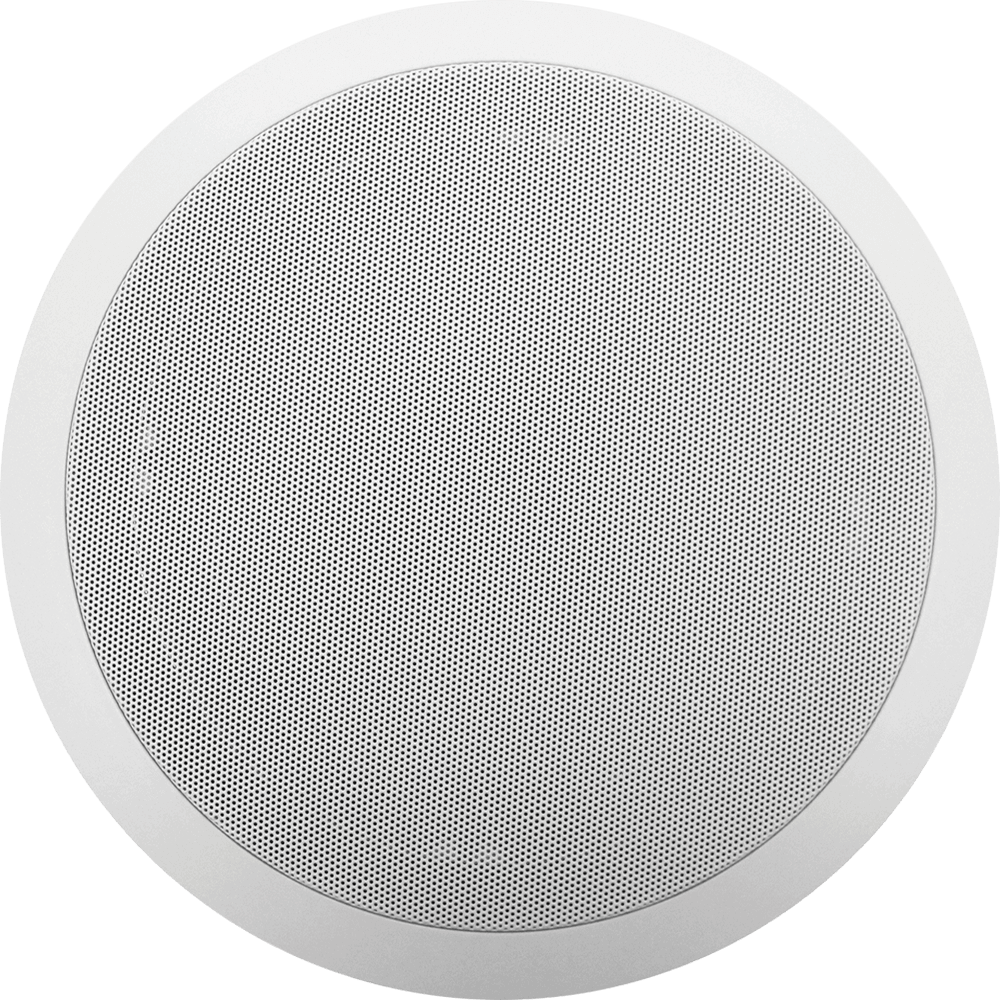

Viking 40-IP IP Ceiling Speaker for SIP Endpoint Paging or Multicast Paging / Background Music

The 40-IP Ceiling/Wall Speaker enables SIP endpoint paging and also allows for standard paging and background music via multicast.

Viking 40-IP Features:

• Connects with a single CAT5/6 cable from your PoE switch
• PoE powered ((class 3, <13 Watts)
• Paging prioritization
• Plays audio from multicast
• SIP endpoint or multicast group member
• Supports up to 10 multicast paging groups
• Blue paging status LED indicator
• SIP compliant
• Autoprovisioning via Viking programming software
• Built-in high efficiency 4 watt class D amplifier
• SIP/Multicast: SIP page, SIP page and zoned multicast stream, zoned multicast receive
• Support for access code to prevent unwanted SIP calls
• Line-level audio output for connecting to an external amplifier
• Network remote speaker volume control
• Can drive additional external analog speakers for greater coverage
• Mounting: Blind mounts into 9.5” hole, clearance requirement of 3.45” (87.3mm) above 1/2” gypsum board ceiling
• Heavy duty back box protects speaker and circuitry from plenum dust

Viking 40-IP Applications:

• • Amplified SIP endpoint or multicast IP paging for:
    • schools
    • hospitals
    • retail stores
    • office spaces, etc.
  • Provide background music and sound masking
  • Add programmable secure relay control with optional RC-4A

Viking 40-IP Specifications:

• • Power: PoE class 3 (<13 Watts)
  • Overall Dimensions: 11″ x 11″ x 4″ (279mm x 279mm x 102mm)
  • Back Box Dimensions: 9.25″ x 9.25″ x 3.45″ (235mm x 235mm x 88mm)
  • Shipping Weight: 5.0 lbs (2.27 kg)
  • Operating Temperature: -40°F to 140°F (-40°C to 60°C)
  • Humidity: 5% to 95% non-condensing
  • Audio Codecs: G711u, G722, and G711a (SIP only)
  • Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over
  • Maximum Output Level: 105 dB SPL @ 1M (with no additional speakers connected)
  • Amplifier: 6 Watt class D (capable of driving up to five additional 8 Ohm speakers connected in parallel)
  • Connections: (1) RJ45 10/100 Base-T, (4) cage clamp screw terminals on pluggable connector

PC Requirements:

• IBM compatible personal computer with: Windows 7, 8 or 10
• Adobe Acrobat Reader 8 or higher
• 40-IP hardware
• Available LAN with PoE (class 3,
• Ethernet cable (CAT5 minimum)
• 1 MB minimum free hard drive space for installation
• 16MB of free physical RAM

VoIP SIP System Compatibility List:

• On Premise
• 3COM VCX
• 3CX
• Allworx
• Aastra
• Asterisk
• Atcom
• Avaya Aura Platform
• Avaya IP Office Platform
• BlueBox
• Brekeke
• Cisco Unified Communications Manager (CUCM)*
• Cisco Unified Communications Manager Express (CUCME)
• Elastix
• epygi QX200
• Freeswitch
• Grandstream*
• Interactive Intelligence
• iPECS (Ericsson-LG)
• Iwatsu ECS
• Kamailio
• Mitel 3300
• NEC
• OfficeSIP
• OpenSIPS
• Panasonic** (with SIP Extension Card)
• PolyCom
• Samsung Communications Manager (SCM)
• ShoreTel
• Siemens Communications Server (SCS)
• SIP Express Router (SER)
• Snom PBX
• Sonus
• Switchvox
• Teksip
• Toshiba
• Vertical Wave*
• Yealink T Series S IP Phones

Cloud Based Service Provider:

• Callcentric
• iptel.org
• MetaSwitch
• Ring Central
• sip.antisip.com
• Switchvox
• unify
• Vertical Wave
• Voice Carrier
• VoIP.MS
• Wildix
• ** Note: Relay operation commands are NOT compatible with Panasonic Phone Systems (Panasonic does not transmit DTMF between station ports)
