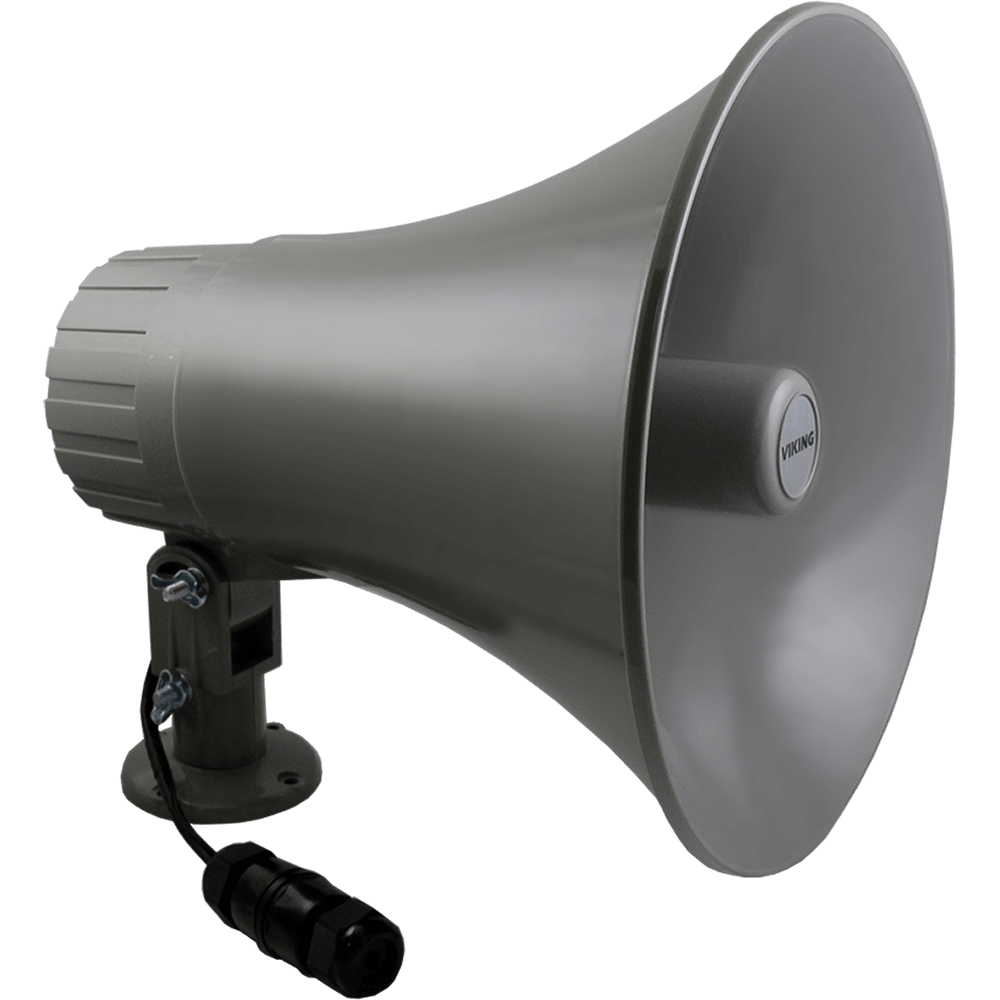

Viking 300TB-IP-EWP SIP / Multicast Paging Horn With Talk-Back And Enhanced Weather Protection

Viking 300TB-IP-EWP SIP / Multicast Paging Horn With Talk-Back And Enhanced Weather Protection



Usually ships in 2 Days

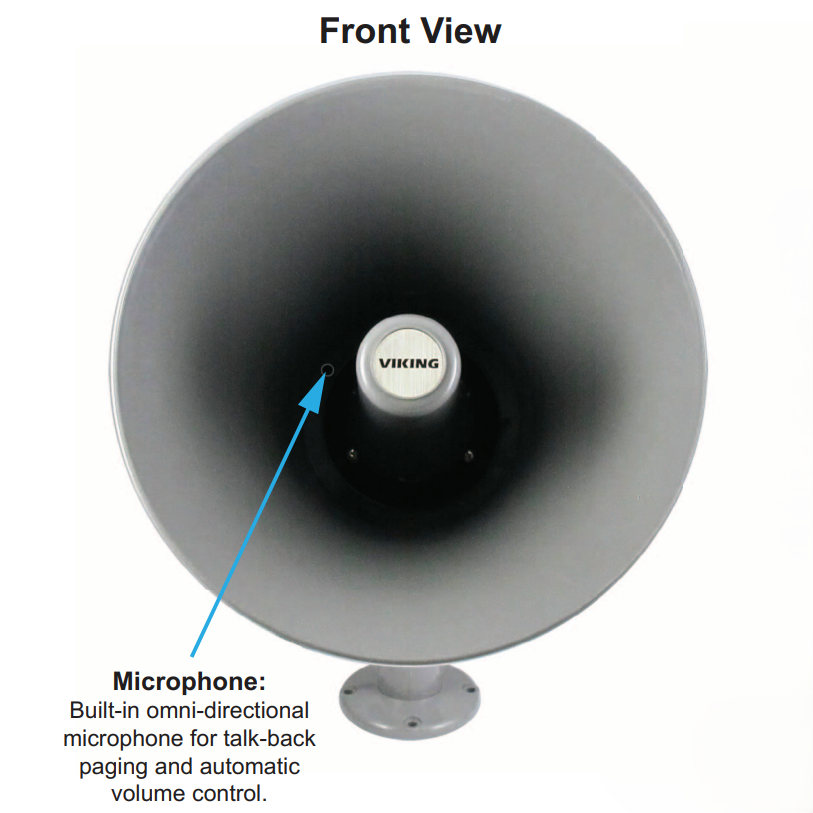

The 300TB-IP-EWP Paging Horn with Talk-Back can be used for: standard one-way SIP endpoint paging, two-way conversations via SIP endpoint paging, one-way multicast paging, and making standard or emergency two-way SIP calls initiated from the optional auxiliary switch input. The microphone enables talk-back and also monitors room noise to automatically increase the speaker volume when necessary. An optional auxiliary switch input allows a hard wired button or switch to initiate a SIP call. The button can be mounted on the wall or concealed under a desk, etc. A momentary button press will initiate a standard call, while holding the button for 3 or more seconds will initiate an emergency call. The 300TB-IP-EWP features a high efficiency 6 Watt class D amplifier capable of driving the horn at up to 113 dB SPL at 1 meter. The 300TB-IP-EWP is equipped with Enhanced Weather Protection (EWP), ideal for outdoor installations where the unit is exposed to precipitation or condensation. EWP products are designed to meet IP66 standards and may feature foam rubber gaskets, sealed connections, gel-filled butt connectors, as well as potted circuit boards with internally sealed, field-adjustable trim pots and DIP switches for easy on-site programming. For more information on EWP, see DOD 859.

View full details

Viking 300-IP Features:

  • Large 10-inch diameter horn
  • Fully adjustable mounting hardware included
  • Quick and easy installation
  • SIP compliant (see the Product Manual for list of compatible IP-PBX phone systems)
  • for more information
  • PoE powered (class 3, <13 Watts)
  • Paging prioritization
  • Plays audio from standard multicast sources
  • SIP endpoint or multicast group member
  • Red call status LED indicator
  • Automatic Noise Canceling (ANC) feature for operation in noisy environments
  • Proprietary VOX switching eliminates the need for “Push to Talk” mode
  • Selectable auto-answer feature for monitoring
  • Compatible with Polycom multicast paging
  • Built-in high-efficiency 6 Watt class D amplifier
  • SIP/Multicast: SIP page, SIP page and zoned multicast receive
  • Support for access code to prevent unwanted SIP calls
  • Hangs up on: busy signal, time-out, or touch tone command
  • Network remote speaker volume control
  • Automatic Gain Control (AGC) to automatically increase ring volume to compensate for ambient noise
  • Diagnostics for testing microphone and horn driver
  • Programmable pre-page alert tone
  • Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating, see DOD 859

  • Manufacturer Warranty: 2 Year Limited Warranty
  • Viking 300TB-IP Applications:

    • Amplified SIP endpoint or multicast IP paging for: Schools, Hospitals, Retail Stores, Office Spaces, etc.
    • Provide background music and sound masking
    • Make standard and/or emergency SIP phone calls via handsfree talk-back speaker
    • Background music and emergency calls for: commercial buildings, distribution centers, service/shop areas, gas stations, indoor/outdoor recreation and sports facilities, transport terminals, etc.

    Viking 300TB-IP Specifications:

    • Power: PoE class 3 (<13 Watts)
    • Dimensions: 10.0” (23.4 cm) diameter, 11.5” (29.2 cm) long
    • Shipping Weight: 4.1 lbs (1.86 kg)
    • Operating Temperature: -40° F to 140° F (-40° C to 60° C)
    • Humidity – Standard Product: 5% to 95% non-condensing
    • SIP Audio Codecs: G711u, G722 and G711a
    • Multicast Audio Codecs: G711u and G722
    • Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross-over
    • Regulatory Compliance: CE, FCC Part 15 and Canada ICES-003 Class A
    • Maximum Output Level: 113 dB SPL @ 1M
    • Amplifier: 6 Watt class D
    • Connections: (1) RJ45 10/100 Base-T

    VoIP SIP System Compatibility List:

      • On Premise
        • 3COM VCX
        • 3CX
        • Allworx
        • Aastra
        • Asterisk
        • Atcom
        • Avaya Aura Platform
        • Avaya IP Office Platform
        • BlueBox
        • Brekeke
        • Cisco Unified Communications Manager (CUCM)*
        • Cisco Unified Communications Manager Express (CUCME)
        • Elastix
        • epygi QX200
        • Freeswitch
        • Grandstream*
        • Interactive Intelligence
        • iPECS (Ericsson-LG)
        • Iwatsu ECS
        • Kamailio
        • Mitel 3300
        • NEC
        • OfficeSIP
        • OpenSIPS
        • Panasonic** (with SIP Extension Card)
        • PolyCom
        • Samsung Communications Manager (SCM)
        • ShoreTel
        • Siemens Communications Server (SCS)
        • SIP Express Router (SER)
        • Snom PBX
        • Sonus
        • Switchvox
        • Teksip
        • Toshiba
        • Vertical Wave*
        • Yealink T Series S IP Phones

    Cloud Based Service Provider:

      • Callcentric
      • MetaSwitch
      • Ring Central
      • Switchvox
      • unify
      • Vertical Wave
      • Voice Carrier
      • VoIP.MS
      • Wildix
