Viking Electronics

E-1600-55-IP ADA Compliant VoIP Emergency Phones with Built-In Dialer and Digital Voice Announcer

E-1600-55-IP ADA Compliant VoIP Emergency Phones with Built-In Dialer and Digital Voice Announcer


SKU: E-1600-55-IP

Usually ships in 2 to 3 weeks business days

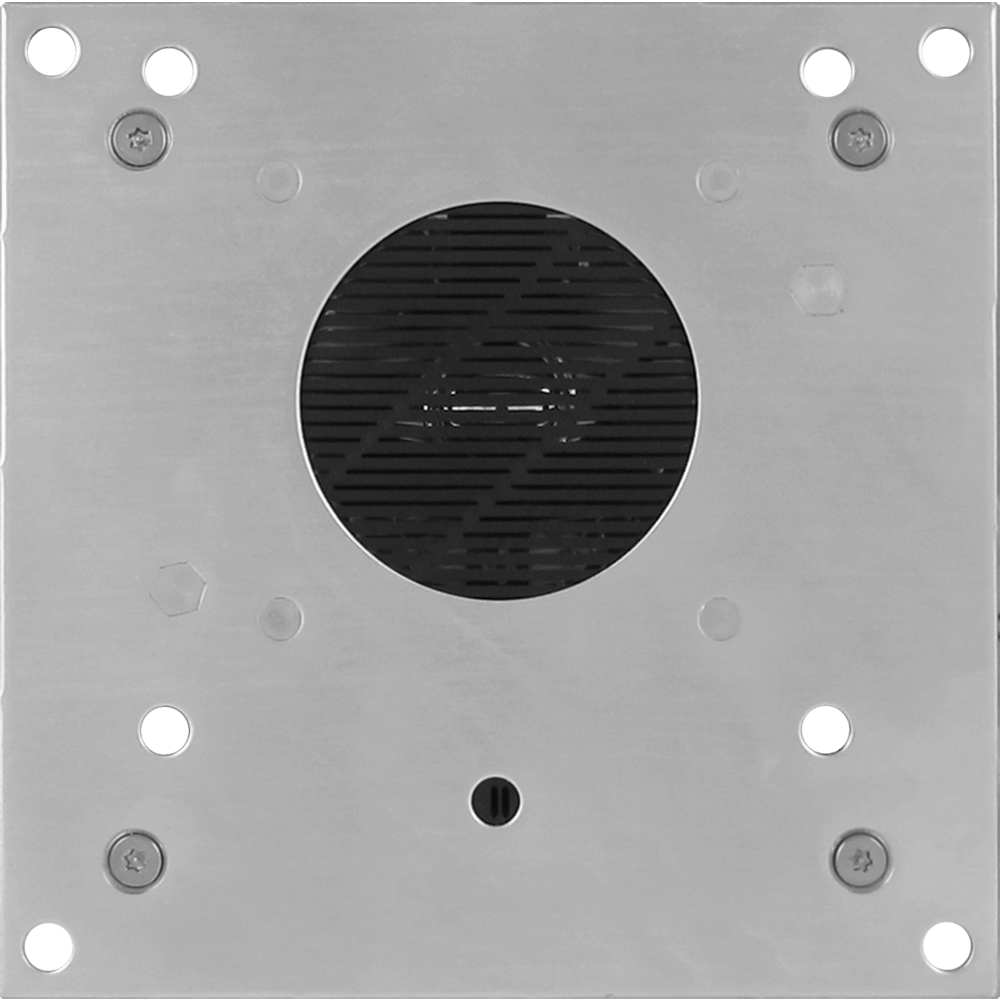

The Viking E-1600-55-IPEWP ADA and CE Compliant VoIP Emergency Phone Kit is designed to provide quick and reliable handsfree communication for SIP VoIP phone systems with PoE. The Viking E-1600-55-IP is designed to be mounted behind a custom panel, meets ADA requirements for elevator / emergency telephones, and can be programmed from any touch tone phone, PC on the same LAN, or remotely using a static IP address. The phones can dial up to 5 programmable emergency numbers.

View full details


Viking E-1600-55-IP Features:

  • Automatic polling and programming software included
  • 2 Amp relay contacts to control an SL-2 Strobe Light (DOD 242) or LV-1K Line Verification Panel (DOD 246)
  • Red “Call Connected” LED indicator
  • SIP compliant (see Product Manual for list of compatible IP-PBX phone systems)
  • PoE powered (class 1, <4 Watts)
  • Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
  • VoIP audio detection eliminates the need for “Push to Talk” mode
  • Network downloadable firmware
  • Handsfree operation
  • Meets ADA requirements for Emergency Phones:
    • Automatically lights the “Call Connected” LED
    • Transmits a unique location ID code or voice announcement
    • Grade 2 Braille label for the visually impaired
  • Non-volatile digital voice announcer with 28 seconds of voice memory
  • Programmable to dial up to 5 numbers
  • Cycles through backup phone numbers on busy or ring-no-answer
  • Hangs up on busy signal, time-out or touch tone command
  • Remotely programmable
  • Diagnostics for testing mic, speaker, relay
  • Extended temperature range: -40°F to 140°F (-40°C to 60°C)

Viking E-1600-55-IP Specifications:

  • Power: PoE class 1 (<4 Watts)
  • Dimensions: See Installation and Specifications
  • Operating Temperature: -26° C to 54° C (-15°F to 130°F)
  • Humidity - Standard Products: 5% to 95% non-condensing
  • Humidity - EWP Products: Up to 100%
  • Audio Codecs: G711u, G711a, G722
  • Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors

VoIP SIP System Compatibility List:

        • On Premise
          • 3COM VCX
          • 3CX
          • Allworx
          • Aastra
          • Asterisk
          • Atcom
          • Avaya Aura Platform
          • Avaya IP Office Platform
          • BlueBox
          • Brekeke
          • Cisco Unified Communications Manager (CUCM)*
          • Cisco Unified Communications Manager Express (CUCME)
          • Elastix
          • epygi QX200
          • Freeswitch
          • Grandstream*
          • Interactive Intelligence
          • iPECS (Ericsson-LG)
          • Iwatsu ECS
          • Kamailio
          • Mitel 3300
          • NEC
          • OfficeSIP
          • OpenSIPS
          • Panasonic** (with SIP Extension Card)
          • PolyCom
          • Samsung Communications Manager (SCM)
          • ShoreTel
          • Siemens Communications Server (SCS)
          • SIP Express Router (SER)
          • Snom PBX
          • Sonus
          • Switchvox
          • Teksip
          • Toshiba
          • Vertical Wave*
          • Yealink T Series S IP Phones

    Cloud Based Service Provider:

          • Callcentric
          • MetaSwitch
          • Ring Central
          • Switchvox
          • unify
          • Vertical Wave
          • Voice Carrier
          • VoIP.MS
          • Wildix
          • ** Note: Relay operation commands are NOT compatible with Panasonic Phone Systems (Panasonic does not transmit DTMF between station ports), Inc. is a leading provider of Viking Electronics phone systems and equipment. We specialize in business phones and business phone systems for small to large companies; with phone systems for any application. We sell many of the brands in the IT, Telecom, Datacom, Electrical, and Industrial spaces.
