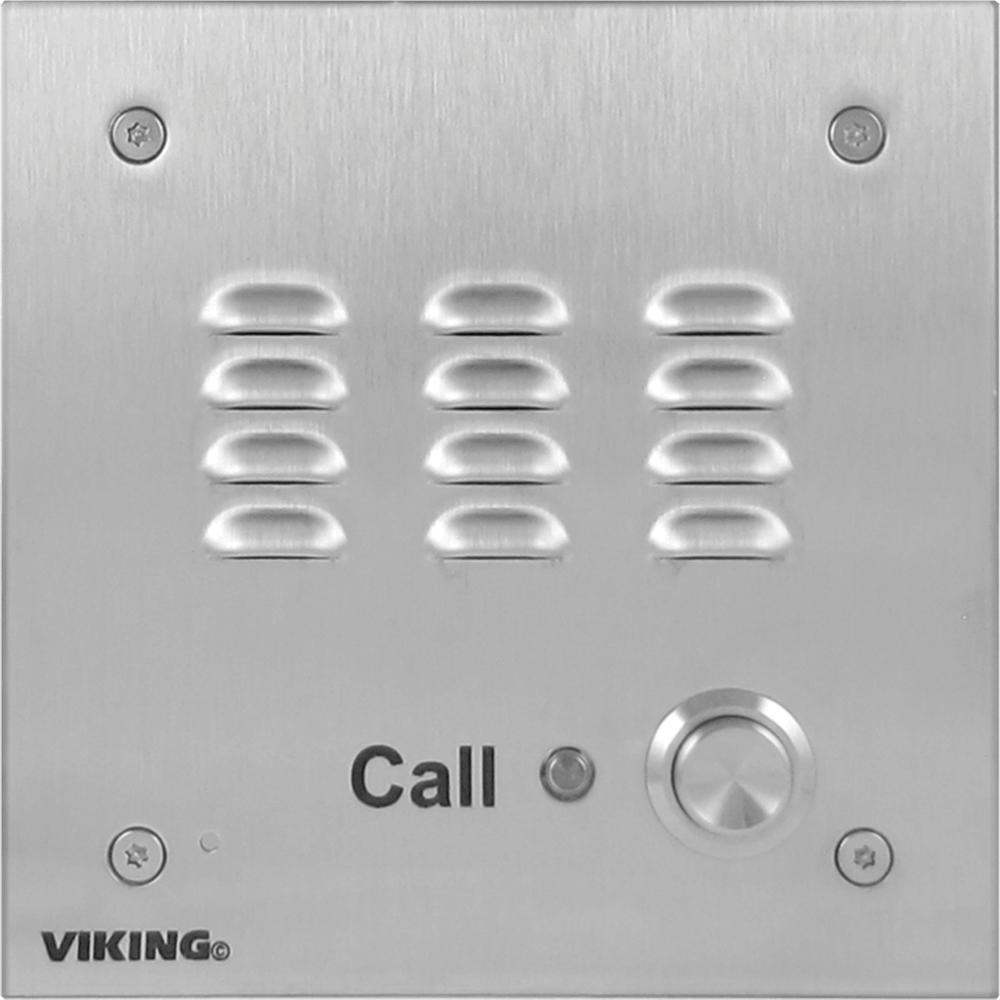

Viking E-30-EWP-CE Stainless Steel Handsfree Speaker Phone with Dialer and Enhanced Weather Protection

Viking E-30-EWP-CE Stainless Steel Handsfree Speaker Phone with Dialer and Enhanced Weather Protection



Only one in stock!

The Viking E-30-EWP entry speaker phone is designed to provide handsfree communication and can be connected directly to a CO line or analog phone system extension.

View full details

Viking E-30-EWP-CE Features:

      • Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
      • Vandal Resistant Features:
        • 14 gauge louvered 316 brushed stainless steel face plate with permanent laser etched graphics
        • Speaker / mic screen
        • Heavy duty metal “Call” button
        • T-10 Torx security mounting screws and drive bit
      • Weather Resistant Features:
        • Enhanced Weather Protection designed to meet IP66 Ingress Protection Rating (see DOD 859)
        • Marine grade 316 stainless steel face plate, screws and push button switch
        • Switch internally sealed per IP67
        • Mylar speaker
        • Self draining mic mount
        • Face plate, mic and speaker gaskets
      • Telephone line powered
      • Non-volatile memory, no batteries required
      • Blue off-hook LED indicator
      • Dials up to 5 emergency numbers
      • Cycles through backup phone numbers on busy or ring-no-answer
      • Hangs up on CPC, silence, busy signal, dial tone, time-out or touch tone command
      • Selectable auto-answer feature for monitoring
      • Extended temperature range (-15°F to 130°F)
      • Flush mounts using the included rough-in box or surface mount using a Viking VE-5×5 Surface Mount Box
      • Optional Door Contact Input to Disable Phone
      • 600 Ohm Output to drive Audio Induction Loop
    • Manufacturer Warranty: 2 Year Limited Warranty
    • Operating Temperature: -26°C to 54°C (-15°F to 130°F)

Viking E-30-EWP-CE Applications:

  • ATM machines
  • Convention centers
  • Non-ADA Hot-Line Phone for:
    • Elevators
    • Parking lots
    • Stadiums
    • Parking ramps
    • Residences
    • Businesses
  • Gate and Door Entry Phone for:
    • Building lobbies
    • Pedestrian gates
  • Viking E-30-EWP-CE Specifications:

    • Power: Telephone line powered (24VDC / 20mA minimum)
    • Overall Dimensions: 5″ x 5″ x 2.25″ (127mm x 127mm x 57mm)
    • Plastic Electrical Box: 4″ x 4″ x 2.12″ (102mm x 102mm x 54mm)
    • Operating Temperature: -15°F to 130°F (-26°C to 54°C)
    • Humidity: Up to 100% condensing
    • Material: 14 gauge 316 stainless steel with #4 brushed finish
    • Minimum Ring Voltage: 25VRMS
    • REN 0.5A
    • Connections: (2) gel-filled butt connectors

    Viking E-30-EWP-CE Certifications:
